Product Details
| Property | Value |
|---|---|
| Product Page | |
| Featured | 1 |
| Property | Value |
|---|
| Property | Value |
|---|---|
| Type Image | COS.png |
| Assembly Code | C3020200 |
| URL | |
| Product Data URL | |
| ABAA Compliance | |

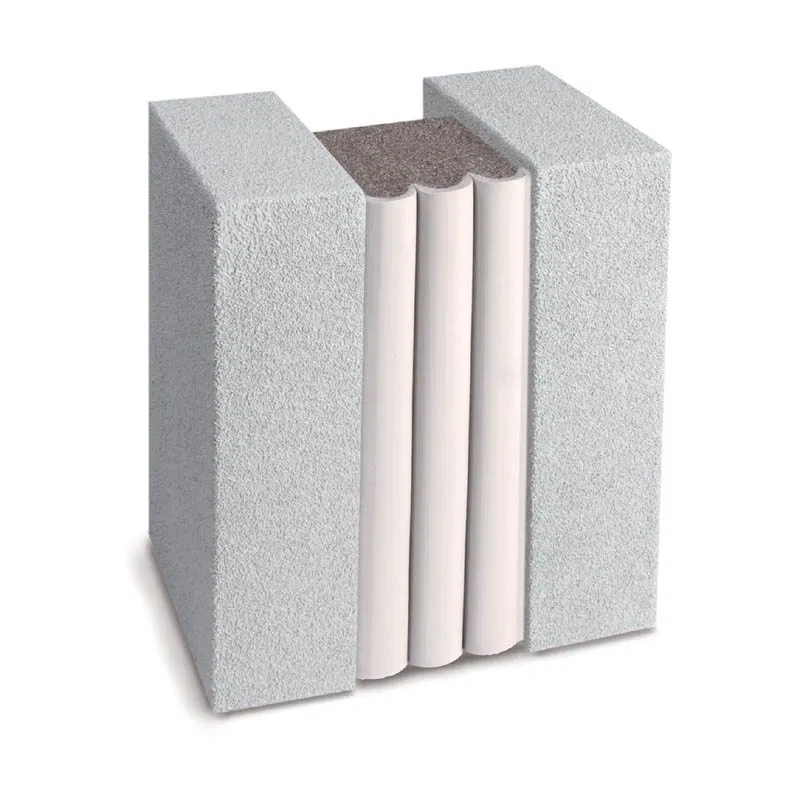

| Description | Watertight vertical-application expansion joint for walls. |
| Manufacturer | EMSEAL Joint Systems Ltd |
| Tensile Strength (ASTM D3574) | 18 psi min; 145 kPa |
| Durometer Hardness of Silicone Coating (ASTM D2240) | Shore A: 25 |
| Model | Seismic Colorseal |
| Temperature Range (ASTM C711) | 185°F (85°C) to -40°F (-40°C) |
| Product Documentation URL | |
| Movement (of Nominal Material Size) | +50% / -50% |
| R Value Range (ASTM C518) | 2.1 per 1-inch (25mm) depth |
| Rate of Air Leakage (ASTM E283) | Passed |
| Product Page URL | |
| Staining (ASTM C510) | None |
| Property | Value |
|---|---|
| Hex Bellow Depth | 0.1214 ft |
| Quint Bellow Depth | 0.1102 ft |
| Calc Width Hex | 0.2926 ft |
| Calc Width Quint | 0.3564 ft |
| Length | 6.5599 ft |
| Calc Width Quad | 0.2926 ft |
| Hex Bellow Radius | 0.0244 ft |
| Quint Bellow Radius | 0.0356 ft |
| Calc Width Single | 0.0417 ft |
| Calc Width Triple | 0.125 ft |
| Width | 10 in |
| Depth | 8 in |
| Property | Value |
|---|---|
| Seal Material Note | Seismic Colorseal is coated on the wall side with standard Sikasil WS-295 water-resistant silicone |
| Seal Material | Silicone - Sikasil WS-295 Beige |
| Property | Value |
|---|---|
| Default Elevation | 0 ft |
| Property | Value |
|---|---|
| Pick Resistance |
| Property | Value |
|---|---|
| Hex Bellow | |
| Quint Bellow | |
| Quad Bellow | |
| Triple Bellow | |
| Single Bellow |
